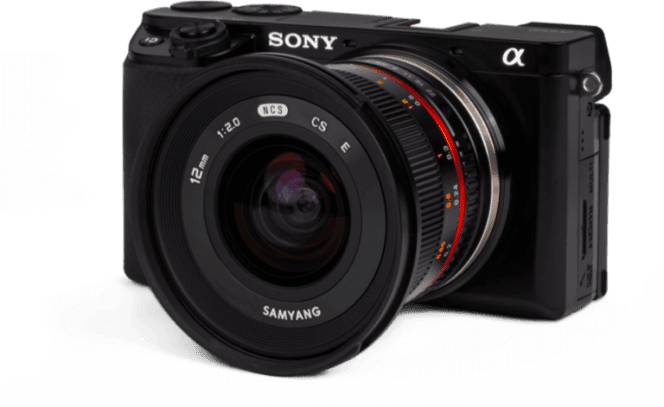

Oblique Sony a6100

Optimized to map vertical structures, this 3D mapping camera allows you to generate high-resolution 3D meshes with centimeter-level absolute accuracy.

Optimised for 3D

WingtraOne’s oblique solution with the fast-triggering ɑ6100 camera and wide-angle 12 mm optics in a tilted mount makes for the optimal solution to map 3D structures, from single buildings to full-scale cities.
WingtraOne’s oblique solution with the fast-triggering ɑ6100 camera and wide-angle 12 mm optics in a tilted mount makes for the optimal solution to map 3D structures, from single buildings to full-scale cities.
metric
imperial
Sensor type
24
MP
APS-C
Lowest GSD
1.6
cm/px
Coverage at 120 m
180
ha
at 3.9 cm/px GSD*
Absolute accuracy (RMS x, y, z) with PPK **
3
cm
Horizontal field of view
90
°
(-45°...45°)
Vertical field of view
66
°
(-18° ... 48°) tilted to the front
Sensor type
24
MP
APS-C
Lowest GSD
1.6
cm/px
Coverage at 120 m
180
ha
at 3.9 cm/px GSD*
Absolute horizontal accuracy down to
2
cm**
Without GCPs
Horizontal field of view
90
°
(-45°...45°)
Vertical field of view
66
°
(-18° ... 48°) tilted to the front
Download
Full technical specifications

* For successful 3D mapping, high side and front overlaps are recommended. The specified numbers refer to the suggested default values of 80% side and 85% front overlap

** Achievable when following Wingtra’s recommended workflow: flying Wingtra drones with built-in GNSS PPK, using WingtraGROUND or a survey-grade base station within 10 km, and processing in WingtraCLOUD. Accuracy refers to independent checkpoints—based on three established GCPs—in processing.

Sensor type
24
MP
APS-C
Lowest GSD
0.6
in/px
Coverage at 400 ft
450
ac
at 1.5 in/px GSD*
Absolute accuracy (RMS x, y, z) with PPK
0.1
ft **
Horizontal field of view
90
°
(-45°...45°)
Vertical field of view
66
°
(-18° ... 48°) tilted to the front
Sensor type
24
MP
APS-C
Lowest GSD
0.6
in/px
Coverage at 400 ft
450
ac
at 1.5 in/px GSD*
Absolute accuracy (RMS x, y, z) with PPK
0.1
ft **
Horizontal field of view
90
°
(-45°...45°)
Vertical field of view
66
°
(-18° ... 48°) tilted to the front
Download
Full technical specifications

* For successful 3D mapping, high side and front overlaps are recommended. The specified numbers refer to the suggested default values of 80% side and 85% front overlap

** Achievable when following Wingtra’s recommended workflow: flying Wingtra drones with built-in GNSS PPK, using WingtraGROUND or a survey-grade base station within 10 km, and processing in WingtraCLOUD. Accuracy refers to independent checkpoints—based on three established GCPs—in processing.

A low-oblique configuration

The WingtraOne oblique solution combines the high-end Sony ɑ6100 camera with a wide-angle 12mm lens in a tilted mount and low-oblique configuration.

The WingtraOne oblique solution combines the high-end Sony a6100 camera with a wide-angle 12mm lens in a tilted mount and low-oblique configuration.

If you are mapping bare earth or open fields, a camera looking straight down is the best solution, because the different points in your image are the same distance from your camera.

If you want to map 3D structures like buildings or highwalls, you want to capture enough detail on the vertical walls. A low-oblique configuration provides a wide field of view to the front and sides, making it the best solution to capture a maximum of detail.

WingtraOne oblique camera illustration
"Low-oblique" means that the camera is tilted to the front at an optimized angle to capture rich details of the vertical facades without unnecessary horizontal information towards the horizon.

Combined with WingtraOne’s unprecedented PPK geotagging accuracy, VTOL capability, and optimized oblique flight planning in WingtraPilot, you can create life-like digital twins with high absolute accuracy in a short amount of time.

The oblique payload is configured in a way that you only have to fly your area once (no cross-grid planning needed). This boosts your field efficiency and allows you to map up to 180 ha (445 ac) * in a single flight.

* Flying at 120 m (400 ft) above ground with a side overlap of 80%.
Absolute accuracy (RMS x, y, z) with PPK
3
cm
0.1 ft

Case study: Zurich digital twin

What better way to test out the oblique payload than to map a city center?

Explore this high-fidelity digital twin of the city of Zurich that was generated using a WingtraOne Sony a6100 Oblique camera and Bentley’s iTwin Capture software.

Read the case study

Bitmap
Explore 3D model

with Bentley iTwin Capture

Bitmap
Explore 3D model

with Esri Site Scan

Bitmap
Watch the video

Combined with WingtraOne’s unprecedented PPK geotagging accuracy, VTOL capability, and optimized oblique flight planning in WingtraPilot, you can create life-like digital twins with high absolute accuracy in a short amount of time.

The oblique payload is configured in a way that you only have to fly your area once (no cross-grid planning needed). This boosts your field efficiency and allows you to map up to 180 ha (445 ac) * in a single flight.

* Flying at 120 m (400 ft) above ground with a side overlap of 80%.
Absolute accuracy (RMS x, y, z) with PPK
3
cm
0.1 ft

Case study: Zurich digital twin

What better way to test out the oblique payload than to map a city center?

Explore this high-fidelity digital twin of the city of Zurich that was generated using a WingtraOne Sony a6100 Oblique camera and Bentley’s iTwin Capture software.

Read the case study

3d model of Zurich outputted from an Oblique Sony a6100 camera
Bitmap
Explore 3D model
Bitmap
Watch the video

Recommended post-processing software

To achieve the best 3D reconstruction results and high-quality meshes from large WingtraOne datasets, we recommend Bentley iTwin Capture or ESRI SiteScan software.

To achieve the best 3D reconstruction results and high-quality meshes from large WingtraOne datasets, we recommend Bentley iTwin Capture or ESRI SiteScan software.

Bentley iTwin Capture

Bentley Zurich 3D mapping output on computer screen with Bentley logo

iTwin Capture is our recommended solution for the creation of digital twins based on 3D mapping with the Oblique Sony a6100.

More details

ESRI SiteScan

Esri Site Scan UX on computer

ESRI SiteScan is an industry-leading end-to-end, cloud-based drone mapping platform, recommended for 3D outputs and offering seamless access to ArcGIS for advanced analytic and hosting services.

More details

Talk to our team

Contact Wingtra or a local distributor. Our experts can:

  • Answer any questions about the WingtraOne
  • Talk about your business and operational needs
  • Advise you about drone use
  • Provide you with a quote
Talk to our team
What's included in the bundle?

Other cameras

comparison Compare tech specs
comparison Compare applications

Tech specs comparison

RGB61 camera
RGB61
Highest resolution and accuracy
Wingtra MAP61
MAP61
Most efficient plus highest-res 3D
Sony camera a6100
Sony a6100
Most affordable
Lens
24 mm lens
17 mm lens
20 mm lens
Technical specifications
Full-frame sensor, 61 MP, RGB
Full-frame sensor, 61 MP, RGB
APS-C sensor, 24 MP, RGB
Camera weight
(incl. mount)
709 g (1.56 lb)
585 g (1.29 lb)
550 g (1.2 lb)
Lowest possible GSD
0.7 cm/px
0.28 in/px
1.2 cm/px
0.47 in/px
1.2 cm/px
0.47 in/px
Maximum coverage at lowest GSD
at 60% side overlap
Up to 110 ha (270 ac) at
45 m (150 ft) flight altitude
Up to 200 ha (500 ac) at 54 m (180 ft) flight altitude
Up to 120 ha (300 ac) at 61 m (233 ft) flight altitude
Maximum coverage at 120 m (400 ft)
at 60% side overlap
Up to 310 ha (760 ac) at 1.9 cm (0.74 in) GSD
Up to 460 ha (1140 ac) at 2.7 cm (1.06 in) GSD
Up to 240 ha (600 ac) at 2.4 cm (0.93 in) GSD
Absolute accuracy (RMS x, y, z) with PPK
3 cm (0.1 ft)
3 cm (0.1 ft)
3 cm (0.1 ft)
Wingtra MAP61
MAP61
Most efficient plus highest-res 3D
Oblique Sony camera a6100
Oblique Sony a6100
3D mapping camera
Lens
17 mm lens
12 mm lens
Technical specifications
Full-frame sensor, 61 MP, RGB
APS-C sensor, 24 MP, RGB
Camera weight
(incl. mount)
585 g (1.29 lb)
730 g (1.6 lb)
Lowest possible GSD
1.2 cm/px
0.47 in/px
1.6 cm/px
0.63 in/px
Maximum coverage at lowest GSD
at 60% side overlap
Up to 200 ha (500 ac) at 54 m (180 ft) flight altitude
Up to 70 ha (180 ac) at 49 m (161 ft) flight altitude
Maximum coverage at 120 m (400 ft)
at 60% side overlap
Up to 460 ha (1140 ac) at 2.7 cm (1.06 in) GSD
Up to 180 ha (450 ac) at 3.9 cm (1.54 in) GSD
Absolute accuracy (RMS x, y, z) with PPK
3 cm (0.1 ft)
3 cm (0.1 ft)
MicaSense
RedEdge-P
High-resolution multispectral and panchromatic sensor
Best for
Environmental monitoring, precision agriculture and Research and Investigation
Main quality features
Comprehensive view into crop health
Technical specifications
5 multispectral sensors (R, G, B, RE, NIR) + panchromatic band, 5.5 mm lens, nadir configuration
Camera weight
(Includes DLS 2 and cable)
502 g (1.1 lb)
Lowest possible GSD
2 cm/px
0.8 in/px
Maximum coverage at lowest GSD
at 70% side overlap
Up to 90 ha (230 ac) at 60 m (190 ft) flight altitude
Maximum coverage at 120 m (400 ft)
at 70% side overlap
Up to 160 ha (395 ac) at 4 cm/px (1.57 in/px) GSD
Absolute accuracy (RMS x, y, z) with PPK
6 cm (0.2 ft)
Wingtra LIDAR camera
LIDAR
Easy-to-use
Best for
Greenfield surveys, ground reconstruction and below vegetation
Main quality features
Map terrain below vegetation
Laser scanner
Hesai XT32M2X
Inertial measurement unit
Inertial Labs Tactical-Grade IMU-P
GNSS system
NovAtel OEM7500
Effective point density in deliverable at 90 m
AGL with 50% side overlap
Hard surface: ~110 pts/m2 (single return)
Low vegetation: up to 220 pts/m2 (dual return)
High vegetation: up to 330 pts/m2 (triple return)
Maximum coverage at 90 m (300 ft)
Up to 360 ha (890 ac) with 30% side overlap
Absolute accuracy (RMS x, y, z) with PPK
3 cm (0.1 ft)
