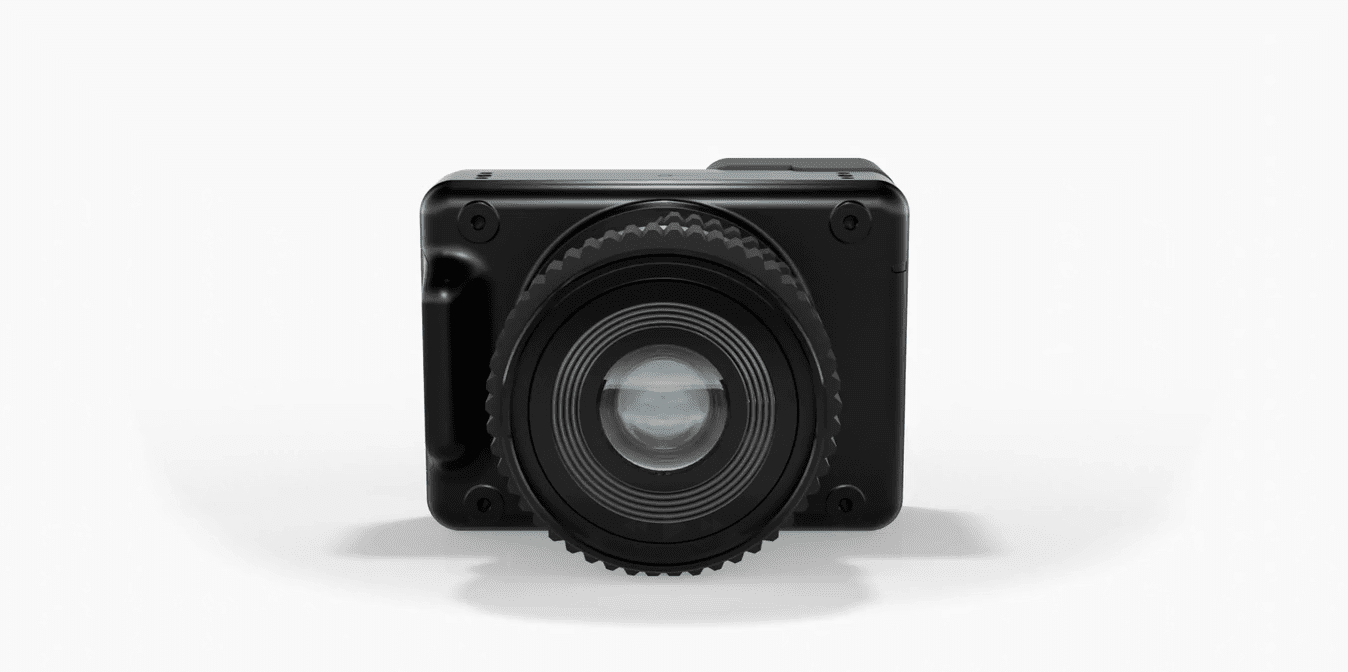

MAP61 is Wingtra's most efficient mapping sensor, engineered for both large-scale 2D mapping and high-resolution 3D models.
* With 2.7 cm/px (1.06 in/px) ground sample distance (GSD) at 120 m (400 ft) AGL (60% side overlap)
MAP61 opens up new possibilities in environments that were once too challenging to map accurately and efficiently.
Better highwall safety
Generate detailed 3D models for accurate slope and rock composition analysis to ensure operational safety.
Road survey amidst live traffic
Capture road corridors safely—even amidst live traffic—by flying parallel to highways in compliance with airspace regulations.
Quick, precise land use monitoring
Identify developments and property boundary encroachment to settle legal arguments, even in challenging environments with tightly-clustered trees or buildings.
Building cadaster for precision taxation
Easily capture detailed building information—e.g., footprints, number of stories, and story areas—to update 3D cadasters for accurate property taxation.
3D digital twins
Create high-res 3D digital twins of urban developments to engage stakeholders in faster decisions.
Forest management
Capture detailed maps to monitor forest health, assess wildfire risks, enhancing responding to fires, and post-fire recovery efforts.
Save time in the field. The oblique mounted 61 MP sensor and wide field of view dramatically speeds up overall mission time.
Cover up in a single flight*
460
ha
1,140 ac
This golf course map, used for management tasks like rating, planning, design, and maintenance organization, was captured in just 37 minutes with the MAP61 sensor, covering 270 ha (670 ac) at 120m (400 ft).
Faster data turnaround. Capture more in each shot and quickly move from fieldwork to final output.
2
x
faster processing time**
With MAP61’s wide 93° field of view, fewer images are needed, reducing the data volume by half and significantly speeding up data processing time.**
** compared to the Wingtra RGB61, at the same flight height and overlap.
Get detailed 3D with reliable accuracy
Capture highly-detailed 3D models of complex structures with precision for accurate analysis and planning.
Absolute accuracy (RMS x, y, z) with PPK *
3
cm
0.1 ft
Easily generate large-scale maps
Only Wingtra combines high-resolution with vertical take-off and landing (VTOL) and WingtraCLOUD. This integration lets you plan, capture, and process everything in one seamless platform, simplifying workflows and delivering faster insights.
Why experts choose MAP61
Stephen Frazee
Project Engineer and Remote Pilot at Water & Environmental Technologies
Even with a strong shadow along the highwall face, the image quality and detail we captured with MAP61 cut right through it—it’s really impressive.
MAP61 data sets
Golf course rating and management
Sensor: MAP61
Coverage: 270 ha (670 ac)
GSD: 2.9 cm/px (1.14 in/px)
Coverage: 270 ha (670 ac)
GSD: 2.9 cm/px (1.14 in/px)
Forest management and wildfire prevention
Sensor: MAP61, MicaSense RedEdge-P
Coverage: 360 ha (890 acres)
GSD: 3.9 cm/px (1.54 in/px)
Coverage: 360 ha (890 acres)
GSD: 3.9 cm/px (1.54 in/px)
Tech specs
metric
imperial
Sensor type
61
MP
Full frame
Absolute accuracy (RMS x, y, z) with PPK *
3
cm
Lowest GSD
1.2
cm/px
Field of view
93 / 70
°
Horizontal / vertical
Coverage at 120 m
460
ha
at 2.7 cm/px GSD
Coverage at lowest GSD
200
ha
at 54 m altitude
Sensor type
61
MP
Full frame
Absolute accuracy (RMS x, y, z) with PPK *
3
cm
Lowest GSD
1.2
cm/px
Field of view
93 / 70
°
Horizontal / vertical
Coverage at 120 m
460
ha
at 2.7 cm/px GSD
Coverage at lowest GSD
200
ha
at 54 m altitude
* Achievable when following Wingtra’s recommended workflow: flying Wingtra drones with built-in GNSS PPK, using WingtraGROUND or a survey-grade base station within 10 km, and processing in WingtraCLOUD. Accuracy refers to independent checkpoints—based on three established GCPs—in processing.
Sensor type
61
MP
Full frame
Absolute accuracy (RMS x, y, z) with PPK *
0.1
ft
Lowest GSD
0.47
in/px
Field of view
93 / 70
°
Horizontal / vertical
Coverage at 400 ft
1140
ac
at 1.06 in/px GSD
Coverage at lowest GSD
500
ac
at 180 ft altitude
Sensor type
61
MP
Full frame
Absolute accuracy (RMS x, y, z) with PPK *
0.1
ft
Lowest GSD
0.47
in/px
Field of view
93 / 70
°
Horizontal / vertical
Coverage at 400 ft
1140
ac
at 1.06 in/px GSD
Coverage at lowest GSD
500
ac
at 180 ft altitude
* Achievable when following Wingtra’s recommended workflow: flying Wingtra drones with built-in GNSS PPK, using WingtraGROUND or a survey-grade base station within 10 km, and processing in WingtraCLOUD. Accuracy refers to independent checkpoints—based on three established GCPs—in processing.
